69.3-inch Full Screen Android Advertising LCD Display with Free CMS Software
This 69.3-inch LCD stretched screen display kiosk features a high-brightness 400nits screen with 4K resolution (3840×1440) and a display area of 1636×64mm. Designed for advertising and digital signage applications, it operates in temperatures from 0 to 55°C and features durable metal and tempered glass construction.
Key Features
- 69.3-inch LCD stretched screen display
- 400nits high brightness screen
- 4K resolution (3840×1440)
- Display area: 1636×64mm
- Operating temperature: 0 to 55°C
- Metal and tempered glass construction
- Optional touch screen capability
- Android 7.1 or 9.0 available
- Free remote control software included
- Supports joint screen displaying
Joint Screen Display Technology
Panoramic Display: Offers an expansive digital canvas with resolutions up to 3840×1440 or 3840×1436, ideal for long-form graphics and multi-panel split-screen layouts.
Space-Optimized: Fits perfectly into areas where standard 16:9 displays won't fit—such as above doorways, in elevator banks, or alongside retail shelving.
Technical Specifications
| Resolution |
3840×1440 |
| Display Area |
1636×634 mm |
| Brightness |
400 cd/m² |
| Number of Colors |
16.7M |
| Response Time |
8ms (approx.) |
| Contrast Ratio |
2000:1 |
| View Angle |
178°/178° (H/V) |
| Lifetime |
> 50,000 hours |
| Power Supply |
AC 110V~240V, 50/60Hz |
| Power Consumption |
180W |
| Shell Material |
Metal + tempered glass |
| Working Temperature |
0 to 55°C |
| Storage Temperature |
-20 to 60°C |
Supported Formats: Photo: JPEG, BMP, GIF, PNG | Audio: MP3, WAV, WMA | Video: MP4, AVI, DIVX, XVID, VOB, DAT, MPG, MPEG, RM, RMVB, MKV, MOV, HDMOV, M4V
Hardware Configuration Options
| Option 1 |
Option 2 |
CPU: RK3568 Quadcore Cortex-A17 1.8GHz
RAM: DDR3 2G
Memory: 32G
Internet: WIFI, LAN
Interfaces: USB×1, USB OTG×1, LAN×1, SD card×1
|
CPU: T972 Quadcore A55, 1.9GHz
RAM: DDR3 2G
SSD: 32G
Internet: Wifi, LAN
Interfaces: HDMI out×1, USB×2, LAN×1
|

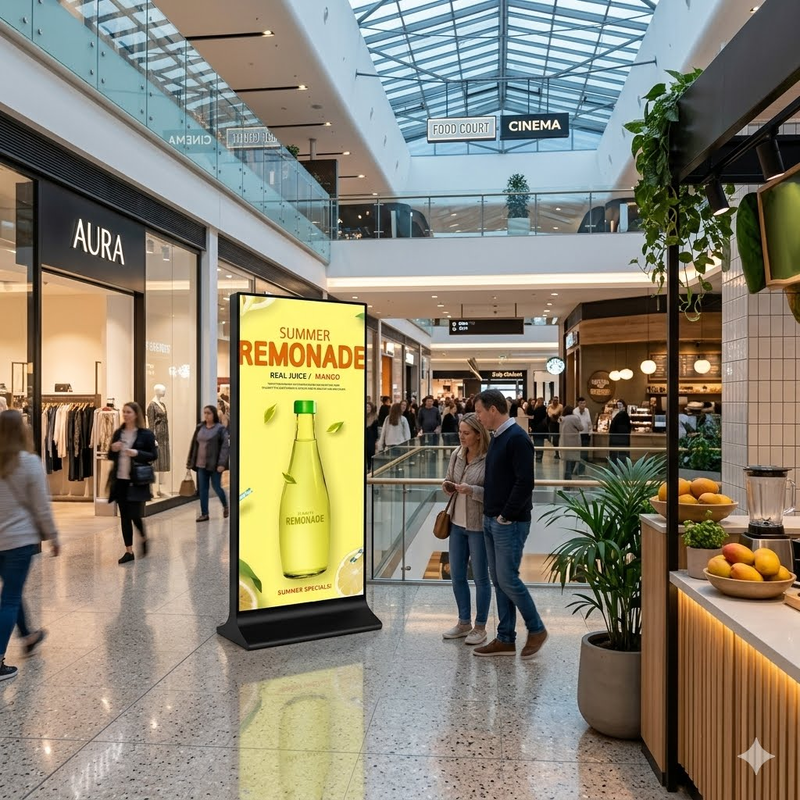

Product Images
Frequently Asked Questions
What is a 69.3-inch stretched display used for?
It is designed for eye-catching, high-impact commercial use. Ideal for retail stores, supermarkets, airports, cinemas, and transit hubs to display dynamic advertisements, pricing information, wayfinding maps, and passenger updates.
What is the resolution and aspect ratio?
These screens feature ultra-wide aspect ratios designed for stretched presentations, commonly offering resolutions up to 2K (e.g., 3440×1440) or 4K depending on the specific panel.
Does it have a built-in operating system?
Most models come with a built-in Android operating system. This allows you to easily connect via Wi-Fi or LAN to publish content and manage your displays remotely using a Content Management System (CMS).
Is it a touchscreen?
Both non-touch and interactive infrared (IR) or capacitive touchscreen versions are widely available. Touchscreen models allow customers to interact with menus, directories, and self-service options.
What file formats are supported?
Standard commercial advertising versions support a wide variety of media formats, including Full HD 1080p videos (MP4, AVI), audio files (MP3), and images (JPEG).
Can it automatically turn on and off?
Yes, the internal smart systems support auto power-on/off timers. You can program group schedules (e.g., 5 groups of time per day, 7 days a week) so the display turns on when your store opens and off when it closes without manual intervention.
How do I manage the content on the screen?
Content can be updated via local plug-and-play using a USB or SD card. Alternatively, you can use the built-in CMS software over Wi-Fi or 4G networks to update displays remotely.
